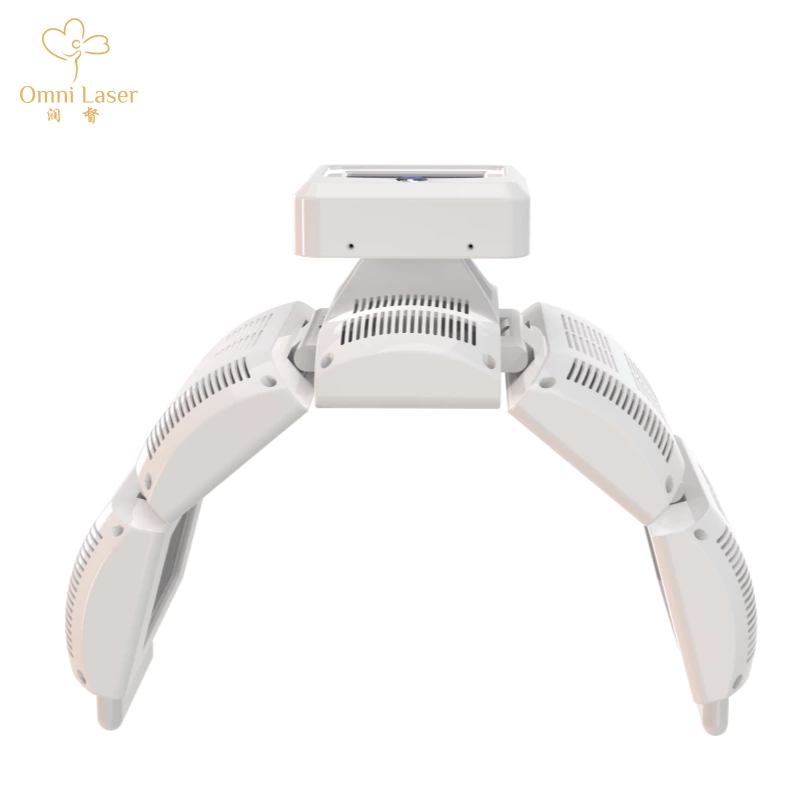

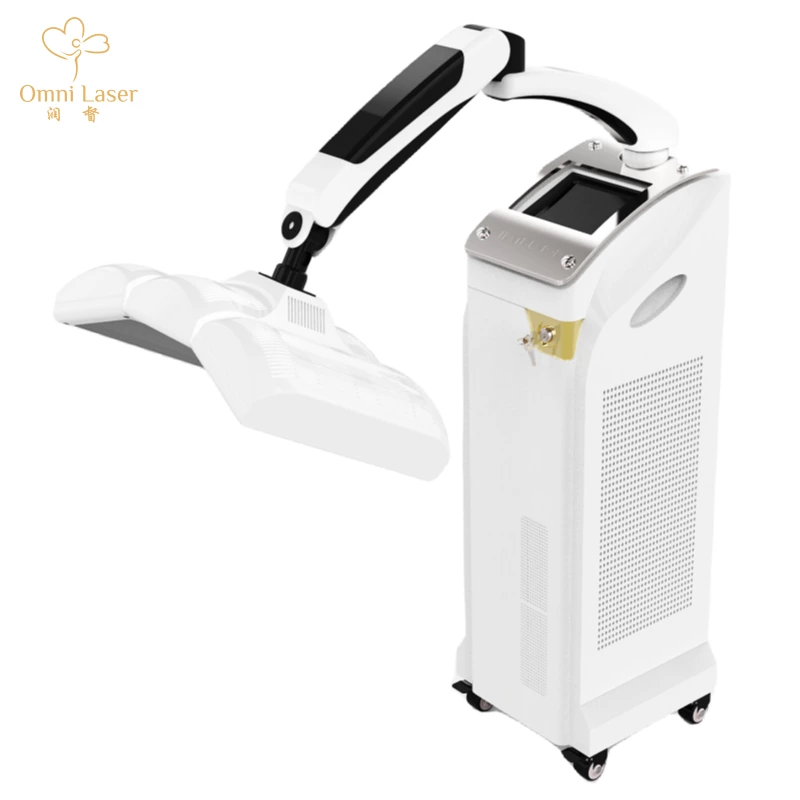

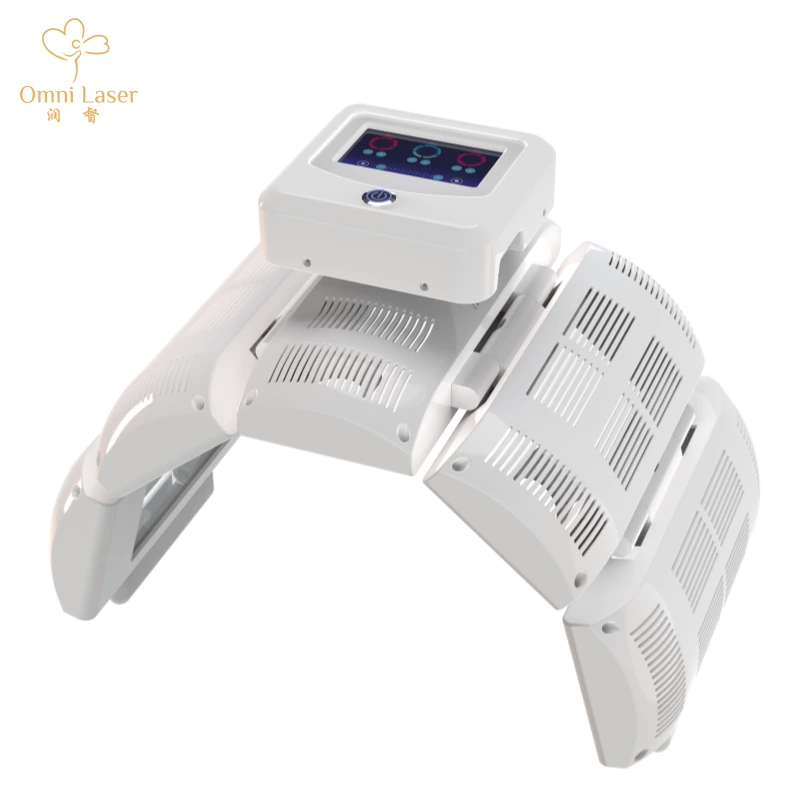

中文PDT Therapy System
Clinic therapy for Anti-aging, Hair regrow, Scar repair, Dilution of stretch marks, Burn injury, Acne therapy, Keratosis, Oily skin, Anti-redness, Pigment, Plastic surgreyaftercare, Inflammation,Edema
- Item NO.:
- OL-PDT300/600/950
- Payment
- EXW, FOB,CIF, DAP,DDP
- Product Origin
- Shanghai,CHINA
- Device Color
- White/Black/Customized
- Delivery Method
- Air Express/Sea Ship/Land Carriage
- Lead Time
- 7-15 workdays
- Treatment Color
- Red/Blue/Infared/Yellow/Green/Others
Specifications
| Model | |||||
| Separate Color | OL-PDT300&600/950 Red | OL-PDT300&600/950 Infared | OL-PDT300&600/950 Blue | OL-PDT950 Yellow | OL-PDT950 Green |
| Total output power | 40w/55w | 70w/88w | 17w/26w | 30w | 22w |
| Output density | 60mW/c㎡75mW/c㎡ | 108mW/c㎡ 120mW/c㎡ | 28mW/c㎡ 35mW/c㎡ | 40mW/c㎡ | 30mW/c㎡ |
| Output wavelenght | 633nm | 850nm or 830nm | 469nm or 420nm | 595nm | 530nm |
| Bandwidth | 16nm | 35nm | 25nm | 16nm | 16nm |
| Standard dose | 72 J/c㎡ | 64J/c㎡ | 40J/c㎡ 38J/c㎡ | 48J/c㎡ | 36J/c㎡ |
| Treatment time | 20 min/16 min | 10 min/8 min | 25 min/ 18min | 20 min | 20 min |
| Dose range (adjustable) | 3.6-356 J/c㎡ 4.5-445.5 J/c㎡ | 6.48-641 J/c㎡ 7.2-712.8 J/c㎡ | 1.68-166 J/c㎡ 2.1-207.9 J/c㎡ | 2.4-237.6 J/c㎡ | 1.8-178.2J/c㎡ |
| Lamp type: | SMD LED | SMD LED | SMD LED | SMD LED | SMD LED |
| LED No. | 1800/2400pcs | 1800/2400pcs | 1800/2400pcs | 2400pcs | 2400pcs |
| Unit dimensions HxWxD | 500/320/600mm；500/500/1200mm | 500/320/600mm；500/500/1200mm | 500/320/600mm；500/500/1200mm | 500/500/1200mm | 500/500/1200mm |
| Head dimensions overall LxW: | 260*420mm；480*256mm | 260*420mm；480*256mm | 260*420mm；480*256mm | 480*256mm | 480*256mm |
Treatment Color(wavelength) is able to customize for different treatment programs and skin tones.
Current FDA 510K approved standard is OL-PDT950 with Red+Blue+Infared Color.
Red Light at 633nm
Reduction in Fine Lines&Wrinkles, lmproved SkinTexture, Clearance of Photo Damaged Skin. SkinTexture, Clearance of Photo Damaged Skin, SkinRepairing, Micro-circulation lmproved
Blue Light at 469nm or 420nm
Acne, Inflammation and Redding of the Skin Therapy Comed ones lmproved
Yellow Light at 590nm
(Help the lymph system to detoxify your body)
Green Light at 525nm
(Reduces pigmentation through penetration into baseskin layers. Preventss the forming of fleck, gravid andaging pigment to keep skin smooth and bright)
Infeard Therapy at 850nm or 830nm
Osteoarthritis/ sports iniuries such as knee, ankle, shoulder, etc/ burns, scrapes, and pain relief from cuts/ ulcers/ fibromyalgia pains/ bunion pain/ tendinitis/ myofascial pain/ minimize recent nerveinjury/ woundhealing, especially in diabetics
Clinic Programs
During a decade year of cooperation with European dermatologist, Omni-Laser summarized many advanced and pratical clinic data that could be easily choosed on our software :
-
Anti-aging
-
Scar repair
-
Dilution of stretch marks
-
Burn injury
-
Hair regrowth stimulation
-
Acne therapy, Keratosis
-
Oily skin
-
Anti-redness
-
Pigment
-
Plastic treatment aftercare, Inflammation
-
Edema
-
More clinic info. are waiting you to reach out...
